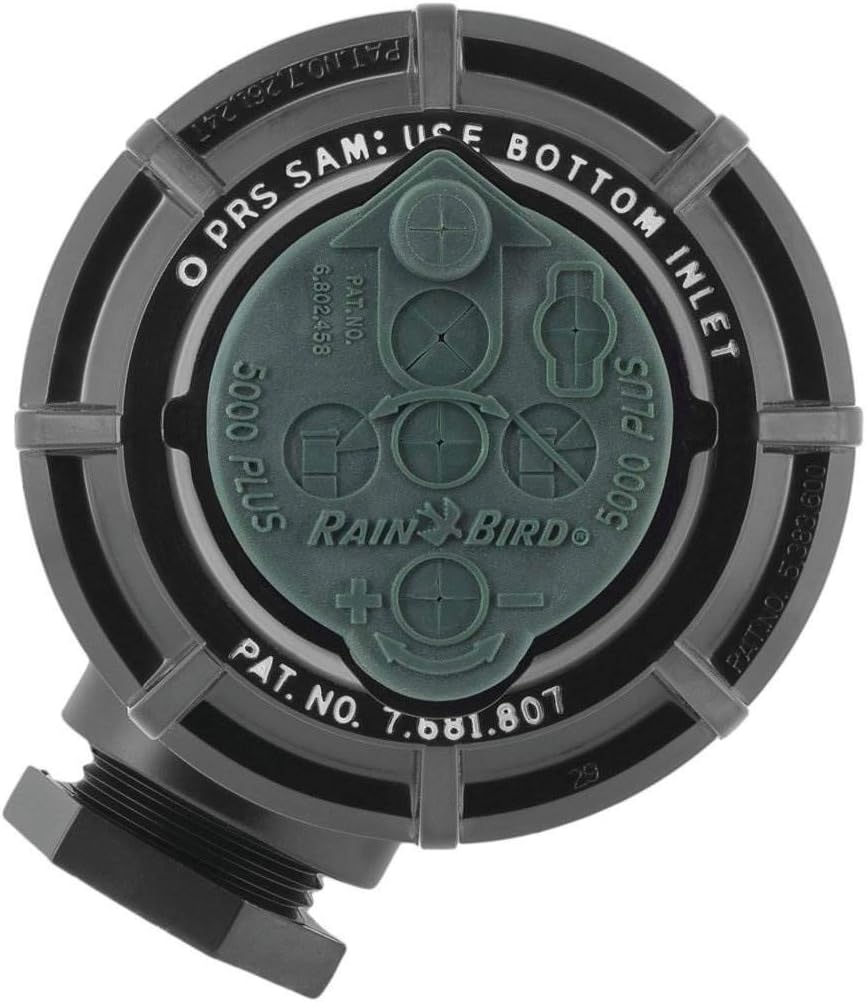

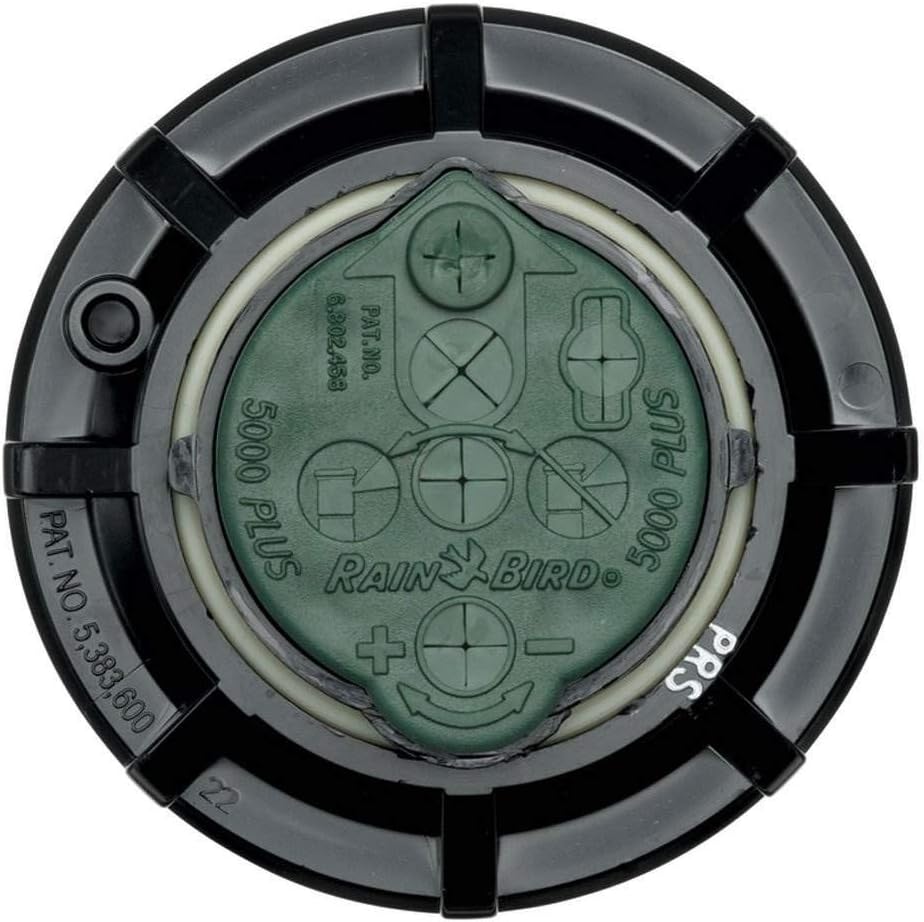

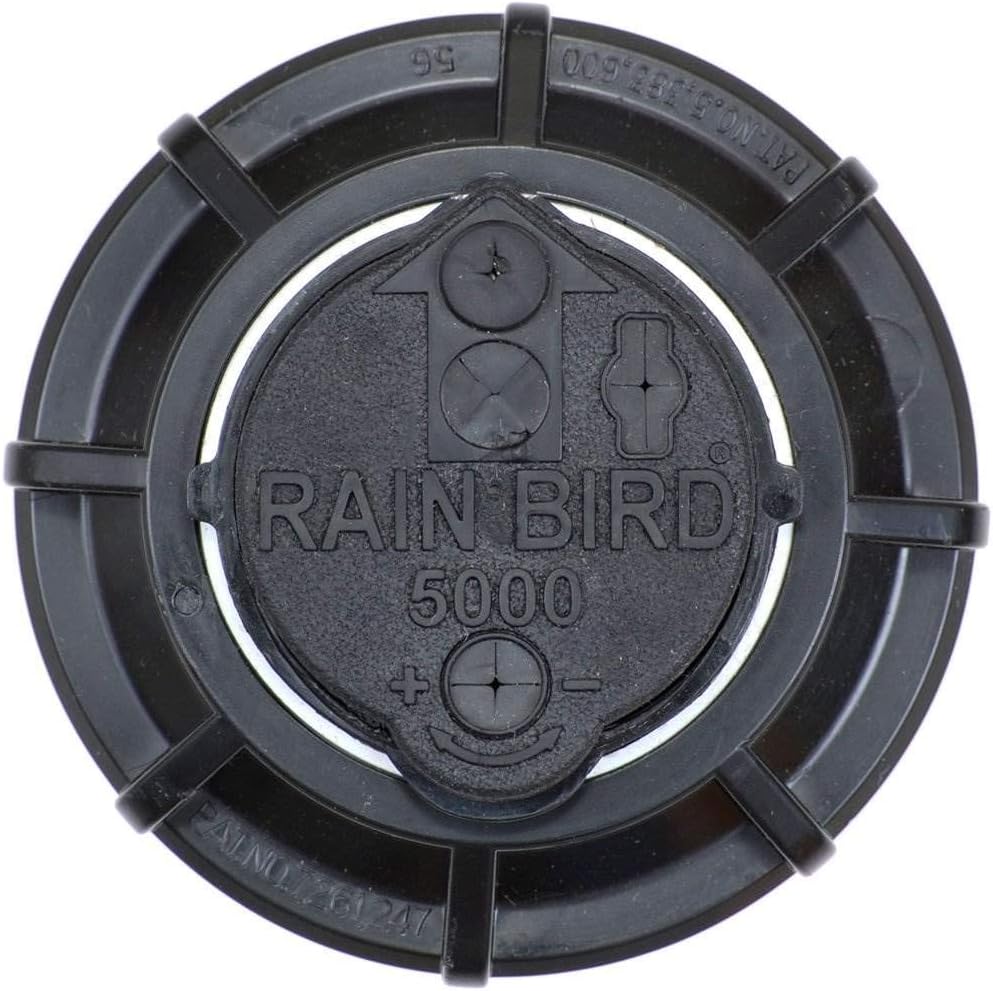

Rain Bird 5004-PC 4" Part Circle Shrub Rotor

Operating Range * Precipitation rate: 0.20 to 1.01 inches per hour (5 to 26 mm/h) * Radius: 25 to 50 feet (7,6 to 15,2 m) * Radius may be reduced up to 25% with radius reduction screw * Pressure: 25-65 psi (1,7 to 4,5 bar) * Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m) Specifications * 3/4" (20/27) NPT female bottom threaded inlet * Reversing full and part circle adjustment 40° – 360° * Full circle only adjustment 360° Dimensions * Pop-up height: Shrub; 4" (10,2 cm); 6" (15,2 cm); 12" (30,5 cm) * Overall body height: Shrub: 7 3/4" (19,7cm) 4": 7 3/8" (18, 5 cm); 6": 9 5/8" (24,5 cm); 12": 16 7/8" (42,9 cm) * Exposed surface diameter: 1 5/8" (4,1 cm) Note: Pop-up height measured from the cover to the nozzle. Overall body height is measured popped down Optional PRS Feature * In-stem pressure regulator (PRS) reduces operating pressure to 45 psi (3,1 bar) for optimal nozzle performance * PRS saves water by: o Eliminating head-to-head pressure variations o Eliminating misting due to high pressure o Improving nozzle distribution uniformity by operating the nozzle at optimum pressure * Maintenance-free design can be easily retrofitted into existing 5000/5000 Plus, T-Bird™ and Hunter® PGP™ (using UPG model) rotor cases without digging up the entire body * Pressure: 25-75 psi (1,7 to 5,2 bar)

• 3/4" 20/27 NPT female bottom threaded inlet
• Flow Rate: 0.73 to 9.63 gpm 42 to 366 l/m
• Heavyduty cover assembly for extra durability
• Heavyduty retract spring assures positive popdown
• Improving nozzle distribution uniformity by operating the nozzle at optimum pressure
